Aluminum Alloy Working Platform For Compression Of Conductor Joints On Tower
Working Platforms are used for conductor compression and sagging on tower. They are made of aluminum alloy, can be assembled with different length. The whole equipment include accessories wire ropes and connection parts.

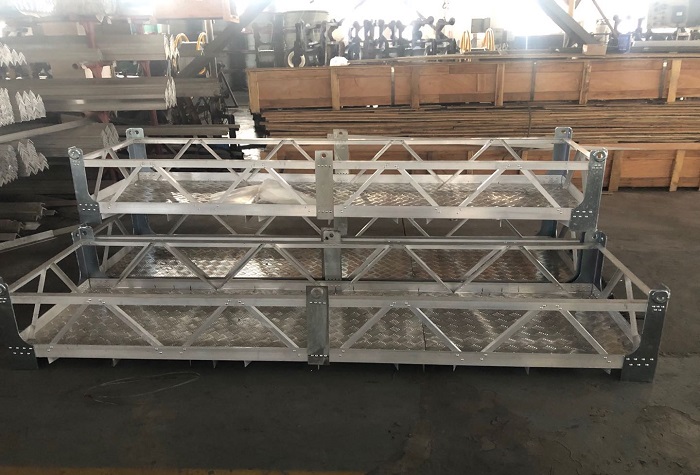

Frame Style Working Platform (Aluminum alloy)
Item No.: 22251
Technical data:
- Rated load (KN): 1.5
- Length (m): 4
- Hoisting points: 4
Application: Used on strain poles for clipping-in conductors or aerial compression joining operations etc.
Section dimension (mm): 350 x 450
Weight (kg): 32
Note: More load required, more suspension ropes are needed. The platform should be tested before use.
Aluminium Alloy Working Platform KL16m
Item No.: 22252
Technical data:
- Rated load (KN): 3
- Length (m): 16 (4+4+4+4)
- Hoisting points: 5
Application: It is used on tower for clipping-in conductors or aerial compression joining operations etc.
Section dimension (mm): 350 x 450
Weight (kg): 192
Note: More load required, more suspension ropes are needed. The platform should be tested before use.
We also designed and produced a few kinds of aluminum ladders for working on transmission line tower:
XT-2 Ladders for Working in Tagged-out Position
| Item No. | Rated load (KN) | Length (m) | Weight (kg) | Suspension points |
| 22221 | 1.5 | 2 | 9 | 4 |
| 22222 | 2 x 2 | 20 | 8 |
| 22223 | 2 x 2.5 | 22 | 8 |
Application: It is ideal for situations that the linemen are required to work from the ladders in a tagged position, such as clipping-in conductors. It is made from aluminum alloy.
